Кольца стопорные плоские наружные

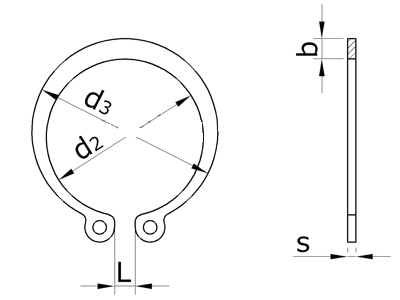

d1 - диаметр канавки;
d2 - номинальный внутренний диаметр кольца в свободном состоянии;
d3 - номинальный наружный диаметр кольца в свободном состоянии;
s - номинальная толщина кольца;
b - максимальная висота тела кольца;
L - ширина разреза кольца в свободном состоянии.
|
Основные размеры эксцентрических колец |
||||||||
|
Обозначение |
Диаметр вала, мм |
Размеры, мм |
Масса 1000 колец, кг |
|||||
|
d1 |
d2 |
d3 |
s |
b |
L |
|||
|
A4 |
4 |
3,6 |
3,5 |
4,96 |
0,4 |
0,9 |
- |
0,021 |
|
A5 |
5 |
4,6 |
4,5 |
6,16 |
0,6 |
1,1 |
- |
0,066 |
|
A6 |
6 |
5,6 |
5,4 |
7,34 |
0,7 |
1,3 |
- |
0,107 |
|
A7 |
7 |
6,6 |
6,4 |
8,54 |
0,8 |
1,4 |
- |
0,140 |
|
A8 |
8 |
7,5 |
7,2 |
9,3 |
1,0 |
1,5 |
- |
0,440 |
|
A9 |
9 |
8,5 |
8,2 |
10,6 |
1,0 |
1,7 |
- |
0,460 |
|
A10 |
10 |
9,5 |
9,2 |
11,8 |
1,0 |
1,8 |
2,0 |
0,490 |
|
A11 |
11 |
10,5 |
10,2 |
12,8 |
1,0 |
1,8 |
3,0 |
0,510 |
|
A12 |
12 |
11,3 |
11,0 |
13,6 |
1,0 |
1,8 |
3,0 |
0,520 |
|
A13 |
13 |
12,2 |
11,9 |
14,7 |
1,0 |
2,0 |
3,0 |
0,550 |
|
A14 |
14 |
13,2 |
12,9 |
15,9 |
1,0 |
2,1 |
3,0 |
0,600 |
|
A15 |
15 |
14,1 |
13,8 |
17,0 |
1,0 |
2,2 |
3,0 |
0,639 |
|
A16 |
16 |
15,0 |
14,7 |
17,9 |
1,2 |
2,2 |
3,0 |
1,043 |
|
A17 |
17 |
16,0 |
15,7 |
19,1 |
1,2 |
2,3 |
3,0 |
1,058 |
|
A18 |
18 |
16,8 |
16,5 |
19,9 |
1,2 |
2,4 |
3,0 |
1,117 |
|
A19 |
19 |
17,8 |
17,5 |
21,1 |
1,2 |
2,5 |
3,0 |
1,447 |
|
A20 |
20 |
18,6 |
18,2 |
21,8 |
1,2 |
2,6 |
3,0 |
1,665 |
|
A22 |
22 |
20,6 |
20,2 |
24,2 |
1,2 |
2,8 |
3,0 |
1,885 |
|
A23 |
23 |
21,5 |
21,1 |
25,3 |
1,2 |
2,9 |
3,0 |
2,000 |
|
A24 |
24 |
22,5 |
22,1 |
26,3 |
1,2 |
3,0 |
3,0 |
2,004 |
|
A25 |
25 |
23,5 |
23,1 |
27,3 |
1,2 |
3,0 |
3,0 |
2,684 |
|
A26 |
26 |
24,5 |
24,0 |
28,2 |
1,2 |
3,1 |
3,0 |
2,782 |
|
A28 |
28 |
26,5 |
25,8 |
30,2 |
1,2 |
3,2 |
3,0 |
2,892 |
|
A29 |
29 |
27,5 |
26,8 |
31,6 |
1,2 |
3,4 |
3,0 |
2,992 |
|
A30 |
30 |
28,5 |
27,8 |
32,8 |
1,2 |
3,5 |
3,0 |
3,102 |
|
A32 |
32 |
30,2 |
29,5 |
34,5 |
1,2 |
3,6 |
3,0 |
3,342 |
|
A34 |
34 |
32,0 |
31,4 |
36,8 |
1,2 |
3,8 |
3,0 |
3,552 |
|
A35 |
35 |
33,0 |
32,2 |
37,6 |
1,7 |
3,9 |
5,0 |
6,300 |
|
A36 |
36 |
34,0 |
33,0 |
38,6 |
1,7 |
4,0 |
5,0 |
6,563 |
|
A37 |
37 |
35,0 |
34,0 |
39,8 |
1,7 |
4,1 |
5,0 |
6,763 |
|
A38 |
38 |
36,0 |
35,0 |
40,6 |
1,7 |
4,2 |
5,0 |
6,963 |
|
A40 |
40 |
37,5 |
36,5 |
42,5 |
1,7 |
4,4 |
5,0 |
7,267 |
|
A42 |
42 |
39,5 |
38,5 |
44,7 |
1,7 |
4,5 |
5,0 |
7,564 |
|
A45 |
45 |
42,5 |
41,5 |
48,1 |
1,7 |
4,7 |
5,0 |
8,067 |
|
A46 |
46 |
43,5 |
42,5 |
49,3 |
1,7 |
4,8 |
5,0 |
8,367 |
|
A48 |
48 |
45,5 |
44,5 |
51,7 |
1,7 |
5,0 |
5,0 |
8,767 |
|
A50 |
50 |
47,0 |
45,8 |
53,0 |
2,0 |
5,1 |
5,0 |
12,994 |
|
A52 |
52 |
49,0 |
47,8 |
55,2 |
2,0 |
5,2 |
5,0 |
13,494 |
|
A54 |
54 |
51,0 |
49,8 |
57,4 |
2,0 |
5,3 |
6,0 |
13,794 |
|
A55 |
55 |
52,0 |
50,8 |
58,6 |
2,0 |
5,4 |
6,0 |
14,294 |
|
A56 |
56 |
53,0 |
51,8 |
59,8 |
2,0 |
5,5 |
6,0 |
14,594 |
|
A58 |
58 |
55,0 |
53,8 |
61,6 |
2,0 |
5,6 |
6,0 |
15,094 |
|
A60 |
60 |
57,0 |
55,8 |
64,0 |
2,0 |
5,8 |
6,0 |
15,494 |
|
A62 |
62 |
59,0 |
57,8 |
66,4 |
2,0 |
6,0 |
6,0 |
15,994 |
|
A65 |
65 |
62,0 |
60,8 |
70,0 |
2,5 |
6,3 |
6,0 |
20,445 |
|
A68 |
68 |
65,0 |
63,6 |
73,2 |
2,5 |
6,5 |
6,0 |
25,883 |
|
A70 |
70 |
67,0 |
65,6 |
75,4 |
2,5 |
6,6 |
6,0 |
26,683 |
|
A72 |
72 |
69,0 |
67,6 |
77,8 |
2,5 |
6,8 |
6,0 |
27,483 |
|
A75 |
75 |
72,0 |
70,6 |
80,6 |
2,5 |
7,0 |
6,0 |
28,614 |
|
A78 |
78 |
75,0 |
73,5 |
84,1 |
2,5 |
7,3 |
6,0 |
31,914 |
|
A80 |
80 |
76,5 |
75,0 |
85,8 |
2,5 |
7,4 |
6,0 |
34,914 |
|
A82 |
82 |
78,5 |
77,0 |
88,2 |
2,5 |
7,6 |
6,0 |
36,214 |
|
A85 |
85 |
81,5 |
79,5 |
91,1 |
2,5 |
7,8 |
6,0 |
37,114 |
|
A88 |
88 |
84,5 |
82,5 |
94,5 |
3,0 |
8,0 |
6,0 |
38,414 |
|
A90 |
90 |
86,5 |
84,5 |
96,5 |
3,0 |
8,2 |
6,0 |
47,615 |
|
A92 |
92 |
88,5 |
86,5 |
98,7 |
3,0 |
8,3 |
6,0 |
48,007 |
|
A95 |
95 |
91,5 |
89,5 |
102,3 |
3,0 |
8,6 |
6,0 |
49,607 |
|
A98 |
98 |
94,5 |
92,5 |
105,9 |
3,0 |
8,9 |
6,0 |
50,207 |
|
A100 |
100 |
96,5 |
94,5 |
108,1 |
3,0 |
9,0 |
8,0 |
50,671 |
|
A102 |
102 |
97,0 |
95,0 |
108,2 |
3,0 |
9,1 |
8,0 |
55,071 |
|
A105 |
105 |
100,0 |
98,0 |
111,6 |
3,0 |
9,3 |
8,0 |
66,871 |
|
A108 |
108 |
103,0 |
101,0 |
114,8 |
3,0 |
9,4 |
8,0 |
68,671 |
|
A110 |
110 |
105,0 |
103,0 |
117,2 |
3,0 |
9,6 |
8,0 |
70,071 |
|
A112 |
112 |
107,0 |
105,0 |
119,4 |
3,0 |
9,7 |
8,0 |
71,271 |
|
A115 |
115 |
110,0 |
108,0 |
122,6 |
3,0 |
9,8 |
8,0 |
73,280 |
|
A120 |
120 |
115,0 |
113,0 |
128,4 |
3,0 |
10,2 |
8,0 |
76,570 |
|
A125 |
125 |
120,0 |
118,0 |
133,2 |
3,0 |
10,4 |
8,0 |
79,825 |
|
A130 |
130 |
125,0 |
122,5 |
138,3 |
3,0 |
10,7 |
8,0 |
92,325 |
|
A135 |
135 |
130,0 |
127,5 |
143,9 |
3,0 |
11,0 |
8,0 |
95,925 |
|
A140 |
140 |
135,0 |
132,5 |
149,3 |
3,0 |
11,2 |
8,0 |
101,925 |
|
A145 |
145 |
140,0 |
137,5 |
154,9 |
3,0 |
11,5 |
8,0 |
103,025 |
|
A150 |
150 |
145,0 |
142,5 |
160,5 |
3,0 |
11,8 |
8,0 |
106,675 |
|
A155 |
155 |
150,0 |
147,5 |
165,3 |
3,0 |
12,0 |
8,0 |
110,075 |
|
A160 |
160 |
155,0 |
152,5 |
170,7 |
3,0 |
12,2 |
8,0 |
113,675 |
|
A165 |
165 |
160,0 |
157,0 |
175,8 |
3,0 |
12,5 |
8,0 |
117,175 |
|
A170 |
170 |
165,0 |
162,0 |
181,6 |
3,0 |
12,9 |
8,0 |
120,875 |
|
A175 |
175 |
170,0 |
167,0 |
186,6 |
3,0 |
12,9 |
8,0 |
124,374 |
|
A180 |
180 |
175,0 |
172,0 |
192,8 |
3,0 |
13,5 |
8,0 |
127,870 |
|
A185 |
185 |
180,0 |
177,0 |
197,8 |
3,0 |
13,5 |
8,0 |
131,570 |
|
A190 |
190 |
185,0 |
182,0 |
203,8 |
3,0 |
14,0 |
8,0 |
134,960 |
|
A200 |
200 |
195,0 |
192,0 |
213,8 |
3,0 |
14,0 |
8,0 |
142,070 |
